101-15 ENGINE CASE PARTS, M44.07 AFTER 43H 01920, M44.08 AFTER 43H 60385
Prev Diagram
Next Diagram
POS NO PART NO DESCRIPTION REMARK MODEL IN STOCK
1

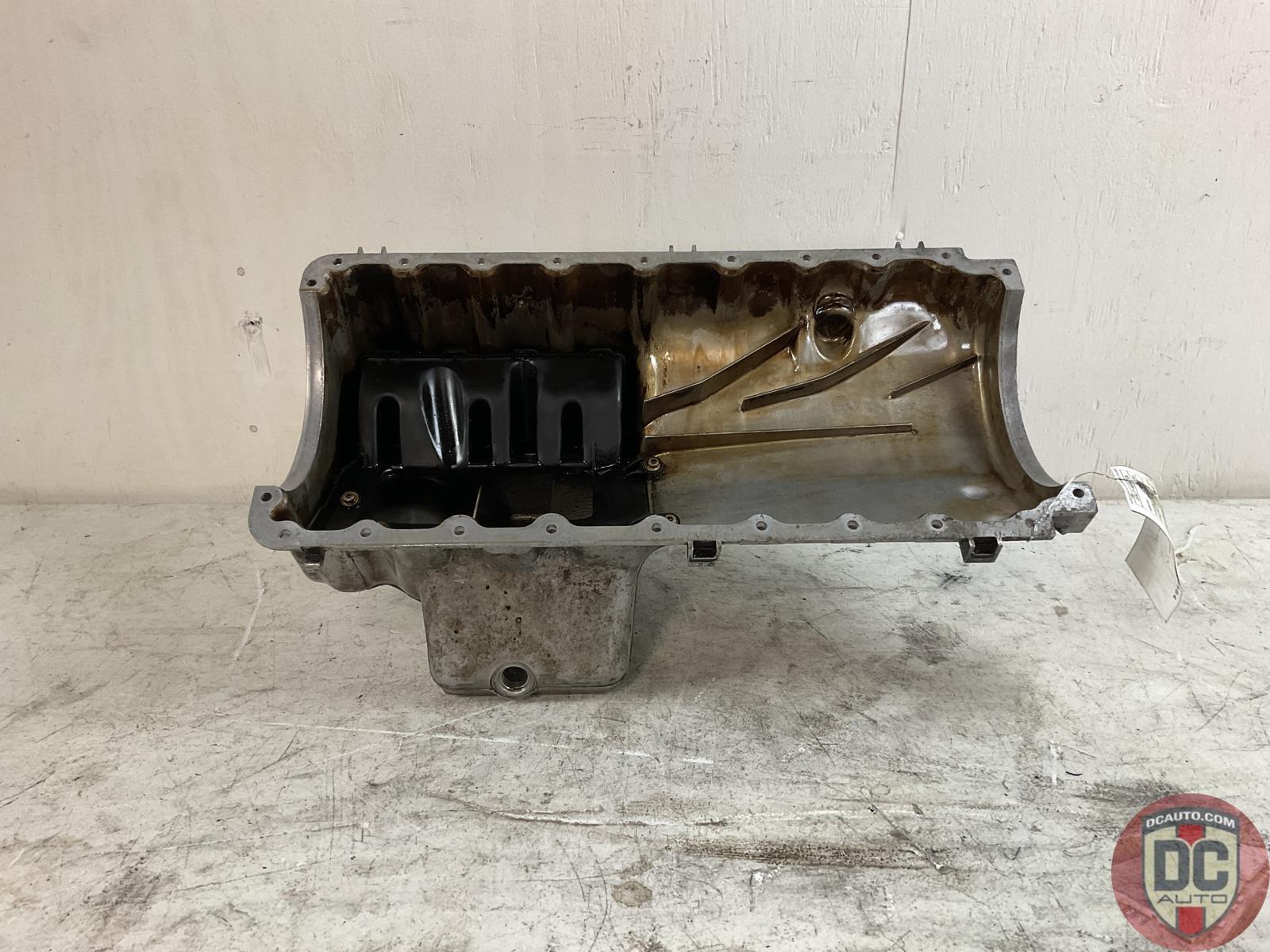

944 101 201 11 Oil pan M44.07 M44.08 UNAVAILABLE ALERT ME
1
944 101 201 14 Oil pan M44.07 M44.08 AVAILABLE
2
N 040 259 1 Hexagon-head bolt m 6x50, . AVAILABLE
3
N 011 524 7 Washer 6.4, superseded to n01152427 AVAILABLE
3
N01 152 427 Washer 6.4 UNAVAILABLE ALERT ME
4
900 075 017 02 Hexagon-head bolt M6x25 AVAILABLE
4
900 075 017 03 Hexagon-head bolt M6X25 UNAVAILABLE ALERT ME
5
944 107 197 01 Oil drain plug AVAILABLE
6
900 123 118 30 Aluminum washer - 22X27X1.5mm AVAILABLE
7
N 016 164 1 Oil plug * UNAVAILABLE ALERT ME
8
900 123 049 30 Seal ring for oil pan plug AVAILABLE
9
944 107 389 02 Insert for oil sump * UNAVAILABLE ALERT ME
10
900 119 001 02 Pan-head screw m5x12, superseded to 90097600301 AVAILABLE
10
900 976 003 01 Pan-head screw m5x12 UNAVAILABLE ALERT ME
11
944 101 205 02 Oil pan gasket, reinz AVAILABLE
12
000 043 019 01 sealing compound SILASTIK 730 RTV 90-CCM UNAVAILABLE ALERT ME
12
PCG 043 019 01 Sealing compound SILASTIK 730 RTV 90 CCM UNAVAILABLE ALERT ME
13
944 104 229 00 Cylinder Head Bolt Washer, sebro AVAILABLE
14
N 011 020 8 Nut, m12x1.5, superseded to 90003403601 AVAILABLE
14
900 034 036 01 Nut m12x1.5 UNAVAILABLE ALERT ME
15
928 101 303 00 Washer, . AVAILABLE
16
N01 101 013 Hexagon nut m10 AVAILABLE
17
900 025 007 02 Washer, M8.4, superseded to 90002500703 UNAVAILABLE ALERT ME
17
900 025 007 03 Washer A8.4 UNAVAILABLE ALERT ME
18
900 074 040 02 Hexagon-head bolt m8x50 AVAILABLE
19
900 075 345 02 Bolt m6x35, superseded to 90007534501 AVAILABLE
19
900 075 345 01 Bolt m6x35 UNAVAILABLE ALERT ME
20
944 101 033 00 Heat shield UNAVAILABLE ALERT ME
21
900 025 007 02 Washer, M8.4, superseded to 90002500703 UNAVAILABLE ALERT ME
21
900 025 007 03 Washer A8.4 UNAVAILABLE ALERT ME
22
900 075 085 02 Hex-bolt m8x20 AVAILABLE
23
N 011 524 7 Washer 6.4, superseded to n01152427 AVAILABLE
23
N01 152 427 Washer 6.4 UNAVAILABLE ALERT ME
24
900 076 010 02 Nut M6, superseded to n02214812 AVAILABLE
24
900 076 010 0B Nut M6 UNAVAILABLE ALERT ME
25
928 101 195 03 Fitting bushing, . UNAVAILABLE ALERT ME
26
999 012 034 00 Straight pin 8x12, . AVAILABLE
27
900 075 087 02 Bolt, M8x16, superseded to 90007508703 UNAVAILABLE ALERT ME
27
900 075 087 03 Bolt M8X16 UNAVAILABLE ALERT ME
-
900 123 105 30 Sealing ring 8x14 AVAILABLE
28
N 011 919 1 Screw cover, crankcase, . AVAILABLE
29
944 101 197 00 Stud, . AVAILABLE
30
900 123 101 30 Connector sealing ring 12x18mm AVAILABLE
31
944 606 125 00 Temperature sensor AVAILABLE
32
944 606 201 00 Temperature sensor * UNAVAILABLE ALERT ME
33
900 123 007 30 Sealing ring A14X18 AVAILABLE
34
900 219 002 02 Screw plug AVAILABLE
35
900 074 326 08 Hexagon-head bolt m 8x58, . AVAILABLE
35
900 074 326 01 Hexagon-head bolt M 8 X 58 UNAVAILABLE ALERT ME
36
999 025 141 02 Washer 8.1x17x3, . AVAILABLE
37
900 075 344 02 Hxhd bolt 6x50, . AVAILABLE
37
900 075 344 01 Hexagon-head bolt M 6 X 50 UNAVAILABLE ALERT ME
38
900 075 349 02 Hxhd bolt 6x42, . AVAILABLE
39
900 074 139 02 Hxhd bolt m8x55, superseded to 90007413903 AVAILABLE
39
900 074 139 03 Hexagon bolt m8x55 UNAVAILABLE ALERT ME
39
N 010 361 4 Hexagon-head bolt M8X65 M657 AVAILABLE
39
N01 036 113 Hexagon-head bolt M8X65 M657 UNAVAILABLE ALERT ME
40
900 025 007 02 Washer, M8.4, superseded to 90002500703 UNAVAILABLE ALERT ME
40
900 025 007 03 Washer A8.4 UNAVAILABLE ALERT ME
41
944 613 150 00 Oil level sensor, 90 day warranty 04-2019 * UNAVAILABLE ALERT ME
42
944 101 329 01 Cover, . (loc- 3245) AVAILABLE
43
999 074 035 02 Xhd screw 5x20, . AVAILABLE
44
944 101 233 00 Gasket UNAVAILABLE ALERT ME
44
944 101 233 02 Gasket - Oil Level Sensor, reinz AVAILABLE
-
999 062 044 02 Stud m8X46 AVAILABLE
